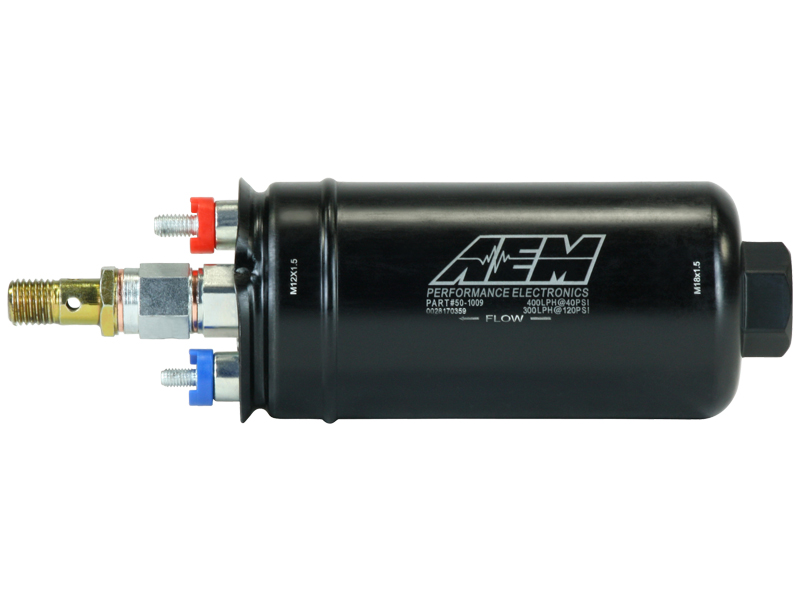

AEM 400LPH (m gänga)
AEM 400LPH (m gänga)
AEM 400LPH (m gänga) - 2
AEM 400LPH (m gänga) - 3

AEM 400LPH (m gänga)

Beskrivning

Art.nr: 50-1009

AEM 400l/h bränslepump
Flödar: 400 liter/h vid 3bar

Tål: Bensin, Etanol, Metanol

Ingående anslutning: M18x1,5
Utgående anslutning: M12x1,5 + backventil

Längd
Diameter 60mm
Vikt: 1015g
Inklusive: Filter, el kontakt med kabel, mm.

Kan monteras både i och utanför tank.

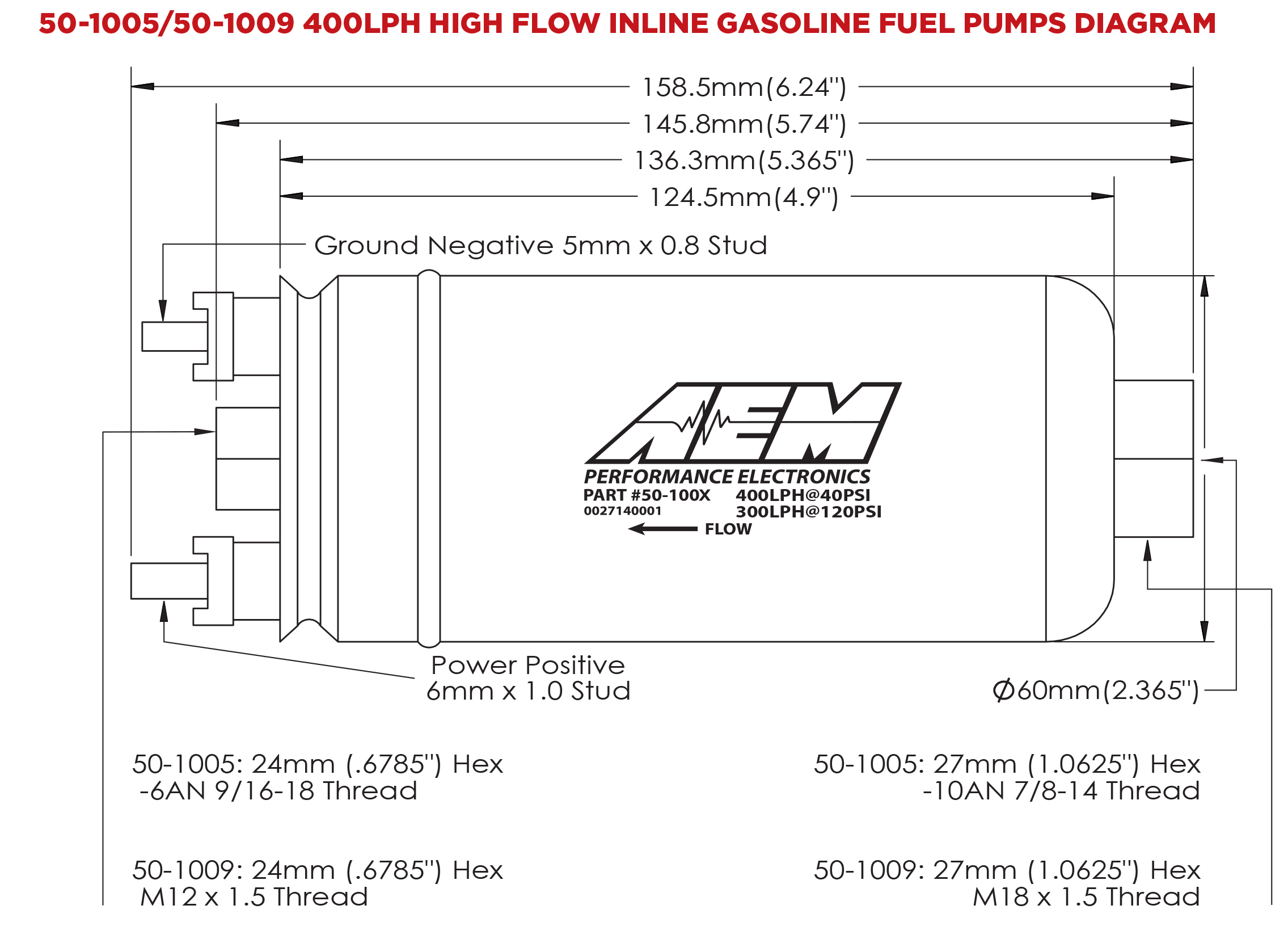

TECHNICAL SPECS:


Weight: 35.8oz (1015 grams)
Outside Diameter: 60mm OD
External Materials: Black plated steel with laser etching, with zamac discharge end cap
Inlet Fitting: M18x1,5
Outlet Fitting: M12x1,5
PRV Activation: 150 PSI
Impeller Design: Roller vane with ceramic end plate


VOLTAGE SPECS:
Connector Terminal: 6mm stud positive, 5mm stud negative
Min Voltage Input: 10 volts
Max Voltage Input: 18 volts
Current Draw (40 psi): 9.73 amps no check valve, 10.68 amps with check valve (13.5v)
Current Draw (120 psi): 16.07 amps no check valve, 17.13 amps with check valve (13.5v)
Fuse: 25 amps (13.5v), 30 amps (13.5v) MAX

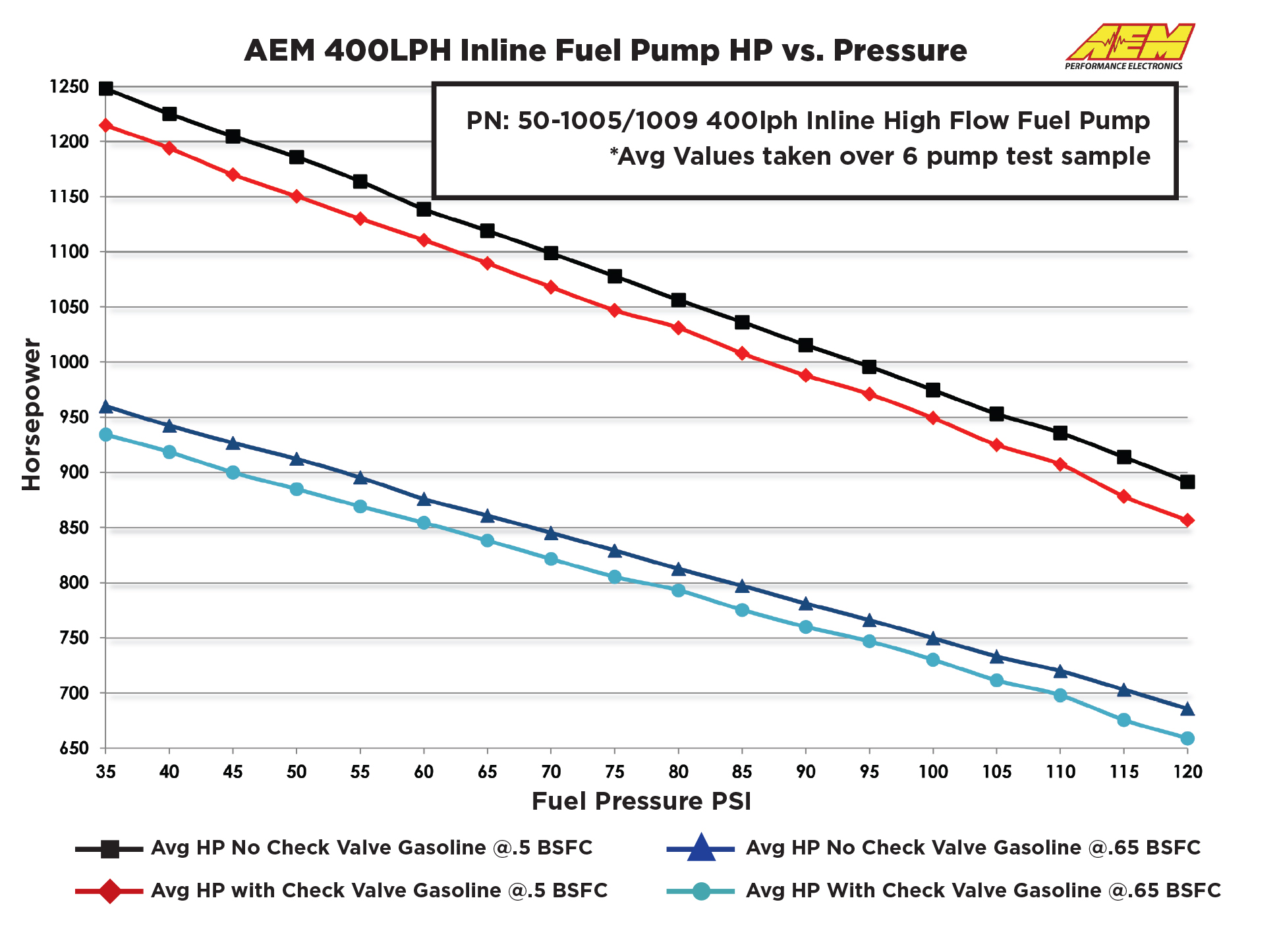

* Power rating given at 43 PSI, 13.5v at the pump with a BSFC of .5. Flow capability for horsepower support is ultimately dependent on fuel hose diameter, and system electrical voltage and amperage capabilities.


AEM's 400LPH AN Fittings High Flow, High Pressure Fuel Pump is designed for high performance naturally aspirated and forced induction EFI vehicles. It can be installed externally or in-tank using optional hardware that is sold separately (see Images tab and part numbers, below). It utilizes the industry standard “044 Style” envelope and same outlet connections for easy installation on new applications and for quick replacement of existing competitor fuel pumps. The 50-1009 fuel pump delivers incredible performance and value.

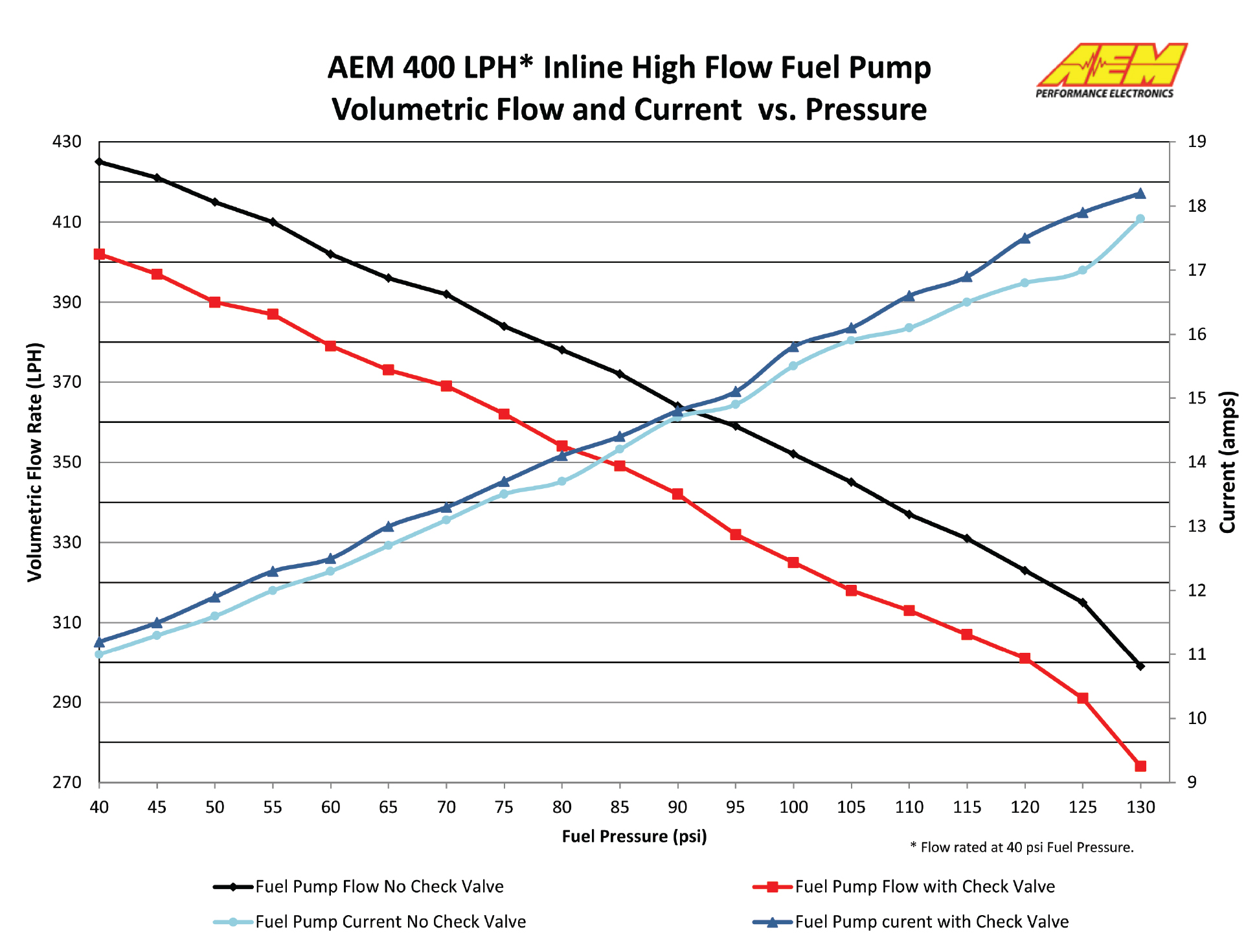

AEM’s 400LPH High Flow, High Pressure Fuel Pump is capable of supporting over 1,200 HP normally aspirated and a whopping 860 HP at 30 psi boost!* It flows 400LPH (100 gph) at 40 PSI, 340LPH (90 gph) at 73 PSI, and 270LPH (71 gph) at 120 PSI. Complete flow curves from 35 to 120 PSI and current draw vs. fuel pressure charts are available in the Specs tab.





  • Designed for high output naturally aspirated and forced induction EFI vehicles
  • Popular “044 Style” physical configuration but with AN inlet & discharge port connections
  • Maintains very high flow even at boosted fuel pressures; 340LPH @ 73 PSI (30 psi boost)
  • Installs externally or in-tank
  • Each pump individually tested to flow minimum of 400LPH (100gph) @ 40 PSI
  • Compatible with Flex Fuel (E85/E90) and all types of gasoline (100% Alcohol fuels may diminish fuel pump life)
2 495 SEK2 295 SEK
Lägsta pris de senaste 30 dagarna2 495 SEK
Detta är marknadens mest kraftiga kompakta externa bränslepump. AEM’s 400l/h Hög flödes, högtrycks bränslepump är kapabel att leverera bränsle upp till 1200hk på bensin på sugmotorer och häpnadsväckande 860hk vid 2 bars laddtryck!* på överladdade motorer.
Läs mer...

Leverans: Lagervara

    Beskrivning

    Art.nr: 50-1009

    AEM 400l/h bränslepump
    Flödar: 400 liter/h vid 3bar

    Tål: Bensin, Etanol, Metanol

    Ingående anslutning: M18x1,5
    Utgående anslutning: M12x1,5 + backventil

    Längd
    Diameter 60mm
    Vikt: 1015g
    Inklusive: Filter, el kontakt med kabel, mm.

    Kan monteras både i och utanför tank.




    TECHNICAL SPECS:


    Weight: 35.8oz (1015 grams)
    Outside Diameter: 60mm OD
    External Materials: Black plated steel with laser etching, with zamac discharge end cap
    Inlet Fitting: M18x1,5
    Outlet Fitting: M12x1,5
    PRV Activation: 150 PSI
    Impeller Design: Roller vane with ceramic end plate


    VOLTAGE SPECS:
    Connector Terminal: 6mm stud positive, 5mm stud negative
    Min Voltage Input: 10 volts
    Max Voltage Input: 18 volts
    Current Draw (40 psi): 9.73 amps no check valve, 10.68 amps with check valve (13.5v)
    Current Draw (120 psi): 16.07 amps no check valve, 17.13 amps with check valve (13.5v)
    Fuse: 25 amps (13.5v), 30 amps (13.5v) MAX



    * Power rating given at 43 PSI, 13.5v at the pump with a BSFC of .5. Flow capability for horsepower support is ultimately dependent on fuel hose diameter, and system electrical voltage and amperage capabilities.


    AEM's 400LPH AN Fittings High Flow, High Pressure Fuel Pump is designed for high performance naturally aspirated and forced induction EFI vehicles. It can be installed externally or in-tank using optional hardware that is sold separately (see Images tab and part numbers, below). It utilizes the industry standard “044 Style” envelope and same outlet connections for easy installation on new applications and for quick replacement of existing competitor fuel pumps. The 50-1009 fuel pump delivers incredible performance and value.



    AEM’s 400LPH High Flow, High Pressure Fuel Pump is capable of supporting over 1,200 HP normally aspirated and a whopping 860 HP at 30 psi boost!* It flows 400LPH (100 gph) at 40 PSI, 340LPH (90 gph) at 73 PSI, and 270LPH (71 gph) at 120 PSI. Complete flow curves from 35 to 120 PSI and current draw vs. fuel pressure charts are available in the Specs tab.





    • Designed for high output naturally aspirated and forced induction EFI vehicles
    • Popular “044 Style” physical configuration but with AN inlet & discharge port connections
    • Maintains very high flow even at boosted fuel pressures; 340LPH @ 73 PSI (30 psi boost)
    • Installs externally or in-tank
    • Each pump individually tested to flow minimum of 400LPH (100gph) @ 40 PSI
    • Compatible with Flex Fuel (E85/E90) and all types of gasoline (100% Alcohol fuels may diminish fuel pump life)

    Filer och media

    Montage instruktioner
