Davies Craig EWP115L Vattenpumpsats, Med styrning
Beskrivning
Art.nr: EWP115L T
Davies craig senaste Värsting vattenpump -EWP115 (8930, 8830)-
elektrisk vattenpump komplett med Digital styrenhet och kablar mm
| SPECIFICATIONS | |
| EWP OPERATING VOLTAGE | 3V DC to 15V DC |
| EWP MAXIMUM FLOW | 115 L/min, (1822 gal / hr) at 13V DC |
| EWP OPERATING TEMP | -40°C to 130°C (-4°F to 284°F) |
| EWP WEIGHT | 980 grams (2.16lb) |
| EWP BURST PRESSURE | 500 kPa (70 psi) |
| EWP FITS HOSE SIZES | 32mm to 51mm (1 ¼" to 2") |
| DIG CONT INPUT VOLTAGE | 12V DC to 13.5V DC |
| DIG CONT OPERATING VOLTAGE | 5V to 13.5V |
| DIG CONT MAX CURRENT | 12A |
| DIG CONT OPERATING TEMP | -20°C to 60°C (5°F to 140°F) |
| DIG CONT SETTING TEMP | 75°, 80°, 85°, 90°, 95° |
| DIG CONT WEIGHT | 90 grams (3.2oz) |

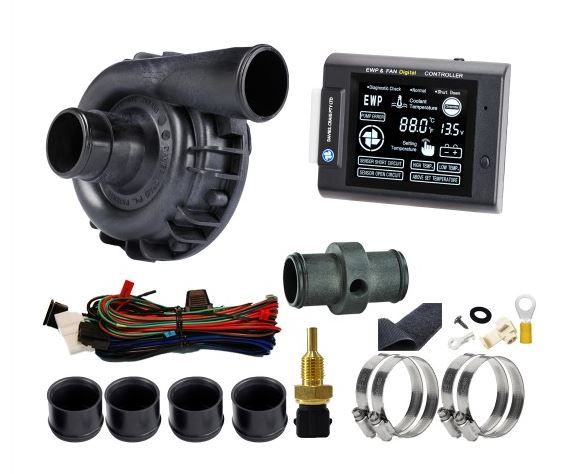

| COMPONENTS | |
| P/No. | DESCRIPTION |

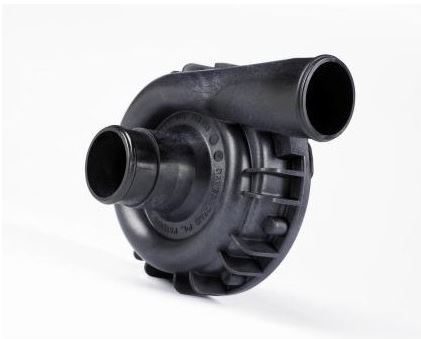

| 8025 | EWP115 Pump |
| 8020 | Digital Controller |
| 8512 | Hose Clamps x 4 |
| 8510 | Rubber Sleeves 3mm x 4 |
| 8411 | Wiring Harness (with 10A fuse) x 1 |
| 8414 | Thermal Sensor x 1 |
| 0410 | In-Line Adaptor x 1 |
| 8526 | Assorted Hardware Bag |
| 8924 | Instruction sheets |
3 349 SEK
